MTCAN 900B

MTCAN 900B


Others claim it, we have it!

There are cameras in the market advertised as 0.001 lux
sensitive, however their claim is true if you use a
powerful IR illumination. Otherwise, their sensitivity
falls down to around 0.05 lux. Unlike those, our cameras
can see in moon and star light and makes supportive
illumination unnecessary.
Our 0.003 lux low light conditions camera. This camera is perfect
for day and night imaging and security applications. Since, its
maximum spectral response is between 900 and 1100 nm and its CCD
is manufactured with the most recent micro technology, it can
see in near dark conditions.

Please see the sample images that are captured without IR
illumination.

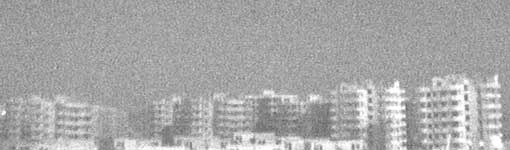

Panorama
Buildings Buildings In the city
Hill Daytime

Following table lists the specifications of MTCAN 900B.

Type 1/3″ B/W CCD
Number Of Total Pixels 573(H) x 505 (V)
Vertical Frequency EIA : 60 Hz
CCIR : 50 Hz
Minimum Illumination 0.003 Lux @ F 1.2 ( Without IR illumination )
Electronic Shutter 1/60 SEC / 1/50 SEC
Gain Control Automatic
Auto Iris Video / DC
B.L.C. On / Off
Synchronization Mode Internal / Line Lock (AC Type)
Signal to Noise Ratio >50 dB
Video Output 1 Vp-p Composite / 75 ohm
Power Supply DC 12V
AC 24V
AC 90V…260V
Power Consumption 1.5 W
Lens Mount C/CS
Operation Temperature -10 Celsius … +50 Celsius / RH 85% or less
Storage Temparature -20 Celsius … +60 Celsius / RH 90% or less
Dimensions AC Type: 55 (W) x 47 (H) x 145 (L) mm
DC Type: 55 (W) x 47 (H) x 115 (L) mm
Weight AC Type: 350 gr
DC Type: 250 gr
