CAN 532 nm GREEN DIODE LASER Specifications:
|
|
|
|
|
|
Model
|
:
|
CDL-1
|
|
Wavelength (nm)
|
:
|
532
|
|
Output power (mW)
|
:
|
20
|
|
Transverse mode
|
:
|
TEM00
|
|
Beam Divergence , full angle (mrad)
|
:
|
<1.2(option 1.8-2.0 )
|
|
Beam height from base (mm)
|
:
|
15
|
|
Power Stability
|
:
|
<%30
|
|
Warm up time (minutes)
|
:
|
<10
|
|
Festing temperature (degree)
|
:
|
25
|
|
Operating Mode
|
:
|
CW
|
|

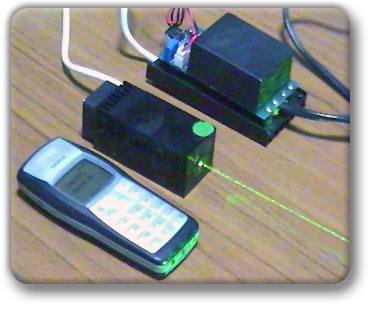

Dimentions of laser head (mm)
|
:
|
65(L),30(W),30(H)
|
|
Net weight of Laser Head (g)
|
:
|
160
|
|
Power supply 80VAC-240VAC
|
:
|
5VDC (PC Board)
|
|
Dimentions of power supply (mm)
|
:
|
90(L), 47(W),40(H)
|
|
Net weigth of laser head with power supply (g)
|
:
|
190
|
|
TTL Modulation
|
:
|
Optional,up to 1kHz,2kHz,5kHz,10kHz
|
|
Beam Range
|
:
|
15 km
|
